Minotaur::ActiveNodeStore Class Reference

Save and retrieve active nodes. More...

#include <ActiveNodeStore.h>

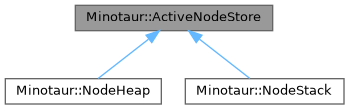

Inheritance diagram for Minotaur::ActiveNodeStore:

Public Member Functions
	ActiveNodeStore ()
	Default Constructor.
virtual	~ActiveNodeStore ()
	Destroy.
virtual double	getBestLB () const =0
	Find the minimum lower bound of all the active nodes. More...
virtual UInt	getDeepestLevel () const =0
	Find the maximum depth of all active nodes. More...
virtual size_t	getSize () const =0
	Get the number of active nodes. More...
virtual bool	isEmpty () const =0
	Check if there are any active nodes left. More...
virtual void	pop ()=0
	Remove the best node from the store. More...
virtual void	push (NodePtr n)=0
	Add a node to the set of active nodes. More...
virtual NodePtr	top () const =0
	Access to the best candidate for evaluating next. More...
virtual void	write (std::ostream &out) const =0
	Display the active nodes. More...

Detailed Description

Save and retrieve active nodes.

Nodes that have not been processed yet by the branch-and-bound algorithm are called active nodes. This base class is used to store them in a suitable data structure (stack or heap).

Member Function Documentation

getBestLB()

virtual double Minotaur::ActiveNodeStore::getBestLB ( ) const

pure virtual

Find the minimum lower bound of all the active nodes.

Implemented in Minotaur::NodeHeap, and Minotaur::NodeStack.

getDeepestLevel()

virtual UInt Minotaur::ActiveNodeStore::getDeepestLevel ( ) const

pure virtual

Find the maximum depth of all active nodes.

Implemented in Minotaur::NodeHeap, and Minotaur::NodeStack.

getSize()

virtual size_t Minotaur::ActiveNodeStore::getSize ( ) const

pure virtual

Get the number of active nodes.

Implemented in Minotaur::NodeHeap, and Minotaur::NodeStack.

isEmpty()

virtual bool Minotaur::ActiveNodeStore::isEmpty ( ) const

pure virtual

Check if there are any active nodes left.

Returns

true if there are no active nodes in the heap, otherwise return false.

Implemented in Minotaur::NodeHeap, and Minotaur::NodeStack.

pop()

virtual void Minotaur::ActiveNodeStore::pop ( )

pure virtual

Remove the best node from the store.

Implemented in Minotaur::NodeHeap, and Minotaur::NodeStack.

push()

virtual void Minotaur::ActiveNodeStore::push ( NodePtr  n )

pure virtual

Add a node to the set of active nodes.

Parameters

[in]

n

Pointer to node to be added.

Implemented in Minotaur::NodeHeap, and Minotaur::NodeStack.

top()

virtual NodePtr Minotaur::ActiveNodeStore::top ( ) const

pure virtual

Access to the best candidate for evaluating next.

Does not remove the best candidate from the storage. It just returns a pointer to it. Use pop() to remove the candidate.

Returns

pointer to the best candidate node.

Implemented in Minotaur::NodeHeap, and Minotaur::NodeStack.

write()

virtual void Minotaur::ActiveNodeStore::write ( std::ostream &  out ) const

pure virtual

Display the active nodes.

Write in order the node IDs and the criteria used to order the nodes, e.g. bound value and depth.

Parameters

[in]

out

output stream to write to.

Implemented in Minotaur::NodeHeap, and Minotaur::NodeStack.

---

The documentation for this class was generated from the following file:

• /home/amahajan/tmp/minotaur-test/src/base/ActiveNodeStore.h
