Class for reformulating a problem using simple rules so that handlers can be applied to it. More...

#include <SimpleTransformer.h>

Inheritance diagram for Minotaur::SimpleTransformer:

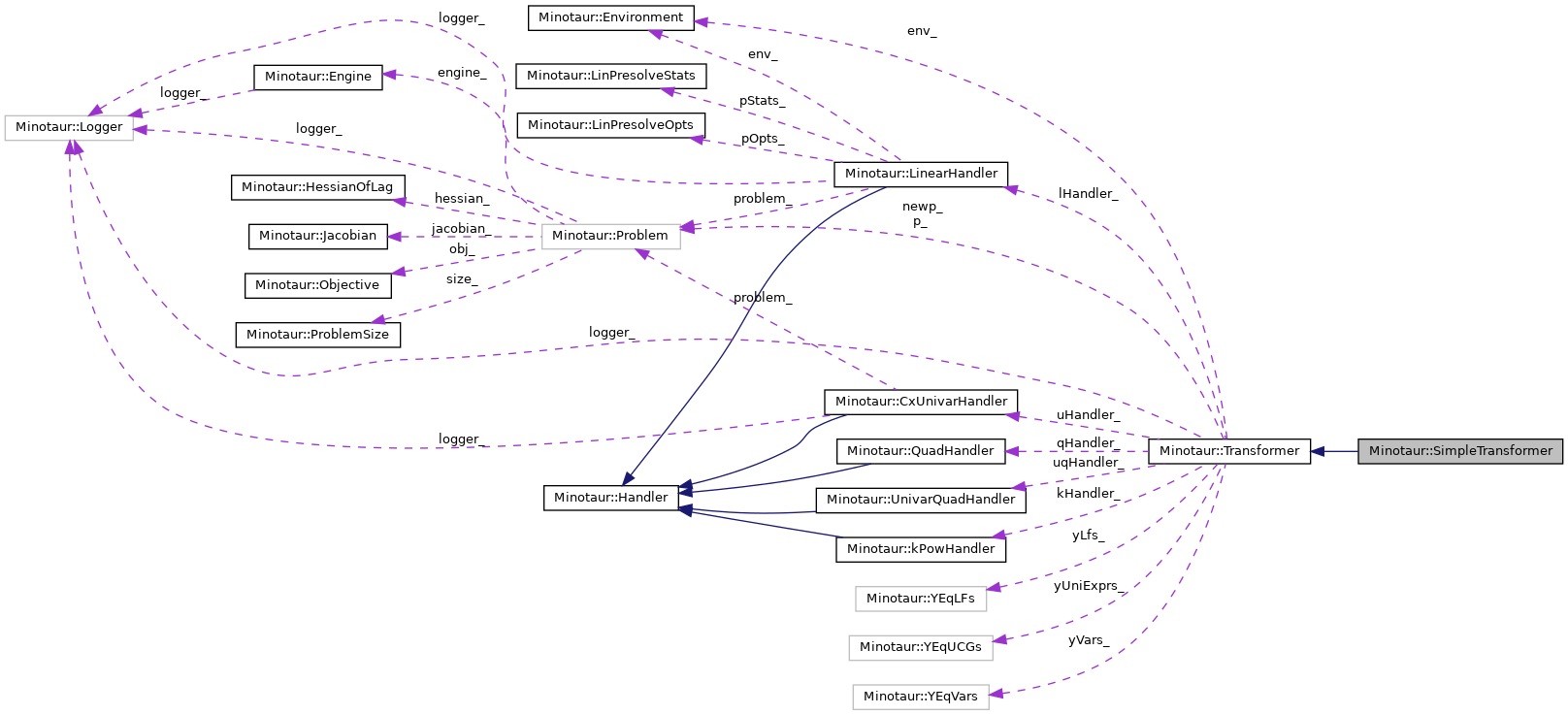

Collaboration diagram for Minotaur::SimpleTransformer:

[legend]

Public Member Functions
	SimpleTransformer ()
	Default Constructor.

	SimpleTransformer (EnvPtr env, ProblemPtr p, LPEnginePtr bte, LPEnginePtr cute, EnginePtr nlpe)
	Constructor.

	~SimpleTransformer ()
	Destroy.

std::string	getName () const
	Get the name of this Transformer. More...

SolutionPtr	getSolOrig (ConstSolutionPtr sol, int &err)
	Translate the solution of reformulated problem into that of original problem. More...

SolutionPtr	getSolTrans (ConstSolutionPtr sol, int &err)
	Translate the solution of originial problem into that of reformulated problem. More...

void	reformulate (ProblemPtr &newp, HandlerVector &handlers, int &status)
	Perform the reformulation, and assign handlers. More...

void	writeStats (std::ostream &out) const

Public Member Functions inherited from Minotaur::Transformer
	Transformer ()
	Default Constructor.

	Transformer (EnvPtr env, ProblemPtr oldp)
	Constructor.

virtual	~Transformer ()
	Destroy.

virtual std::string	getName () const =0
	Get the name of this Transformer. More...

virtual SolutionPtr	getSolOrig (ConstSolutionPtr sol, int &err)=0
	Translate the solution of reformulated problem into that of original problem. More...

virtual SolutionPtr	getSolTrans (ConstSolutionPtr sol, int &err)=0
	Translate the solution of originial problem into that of reformulated problem. More...

virtual void	reformulate (ProblemPtr &newp, HandlerVector &handlers, int &status)=0
	Perform the reformulation, and assign handlers. More...

Additional Inherited Members
Protected Member Functions inherited from Minotaur::Transformer
bool	allConsAssigned_ (ProblemPtr p, HandlerVector &handlers)
	Check if all constraints in a problem have been assigned to a handler. More...

void	assignHandler_ (CGraphPtr cg, ConstraintPtr c)
	Assign an appropriate handler to a nonlinear constraint of the form . More...

void	clearUnusedHandlers_ (HandlerVector &handlers)
	Delete unused handlers. More...

void	copyLinear_ (ConstProblemPtr p, ProblemPtr newp)
	Copy all the linear constraints of the problem into the new problem. More...

void	copyVars_ (ConstProblemPtr p, ProblemPtr newp)
	Copy all the linear constraints of the problem into the new problem. More...

virtual void	makeObjLin_ ()

void	minObj_ ()
	Convert a maximization objective into minimization.

VariablePtr	newVar_ (VariablePtr iv, double d, ProblemPtr newp)
	Find the auxiliary variable associated with or create a new one. More...

VariablePtr	newVar_ (LinearFunctionPtr lf, double d, ProblemPtr newp)
	Find the auxiliary variable associated with or create a new one. More...

VariablePtr	newVar_ (CGraphPtr cg, ProblemPtr newp)
	Find the auxiliary variable associated with or create a new one. More...

Protected Attributes inherited from Minotaur::Transformer
EnvPtr	env_
	The pointer to environment.

LinearHandlerPtr	lHandler_
	Handler for linear constraints and variables.

LoggerPtr	logger_
	Logger.

ProblemPtr	newp_
	The transformed problem.

ProblemPtr	p_
	The original problem.

kPowHandlerPtr	kHandler_
	Handler for y = x^k type constraints.

QuadHandlerPtr	qHandler_
	Handler for quadratic terms.

CxUnivarHandlerPtr	uHandler_
	Handler for univariate constraints.

UnivarQuadHandlerPtr	uqHandler_
	Handler for univariate quadratic constraints.

YEqLFs *	yLfs_
	Storage for auxiliary variables defined by relations of the form .

YEqUCGs *	yUniExprs_
	Storage for auxiliary variables defined by relations of the form .

YEqVars *	yVars_
	Storage for auxiliary variables defined by relations of the form .

const double	zTol_
	Tolerance for checking if a value is zero.

Detailed Description

Class for reformulating a problem using simple rules so that handlers can be applied to it.

No multilinear terms are created. QuadHandler is used only for terms $y=x_1x_2$ . Squares etc. are handled by PowerHandler. ExpHandler takes care of exponential functions, and LogHandler handles logarithms. TrigHandler is used for trigonometric functions. Mainly used to teach Ashu some global optimization.

Member Function Documentation

◆ getName()

std::string SimpleTransformer::getName ( ) const

virtual

Get the name of this Transformer.

Implements Minotaur::Transformer.

◆ getSolOrig()

SolutionPtr SimpleTransformer::getSolOrig	(	ConstSolutionPtr	sol,
		int &	err
	)

virtual

Translate the solution of reformulated problem into that of original problem.

Parameters

[in]	sol	Solution of the reformulated problem.
[out]	err	Zero if no error is encountered, nonzero otherwise.

Returns: Solution of original problem.

Implements Minotaur::Transformer.

◆ getSolTrans()

SolutionPtr SimpleTransformer::getSolTrans	(	ConstSolutionPtr	sol,
		int &	err
	)

virtual

Translate the solution of originial problem into that of reformulated problem.

Parameters

[in]	sol	Solution of the original problem.
[out]	err	Zero if no error is encountered, nonzero otherwise.

Returns: Solution of the reformulated problem.

Implements Minotaur::Transformer.

◆ reformulate()

void SimpleTransformer::reformulate	(	ProblemPtr &	newp,
		HandlerVector &	handlers,
		int &	status
	)

virtual

Perform the reformulation, and assign handlers.

Parameters

[out]	newp	The new, reformulated problem.
[out]	handlers	A vector of handlers used to reformulate the problem.
[out]	status	Zero if reformulated successfully. Nonzero otherwise.

Implements Minotaur::Transformer.

The documentation for this class was generated from the following files:

/home/amahajan/tmp/minotaur-test/src/base/SimpleTransformer.h
/home/amahajan/tmp/minotaur-test/src/base/SimpleTransformer.cpp
